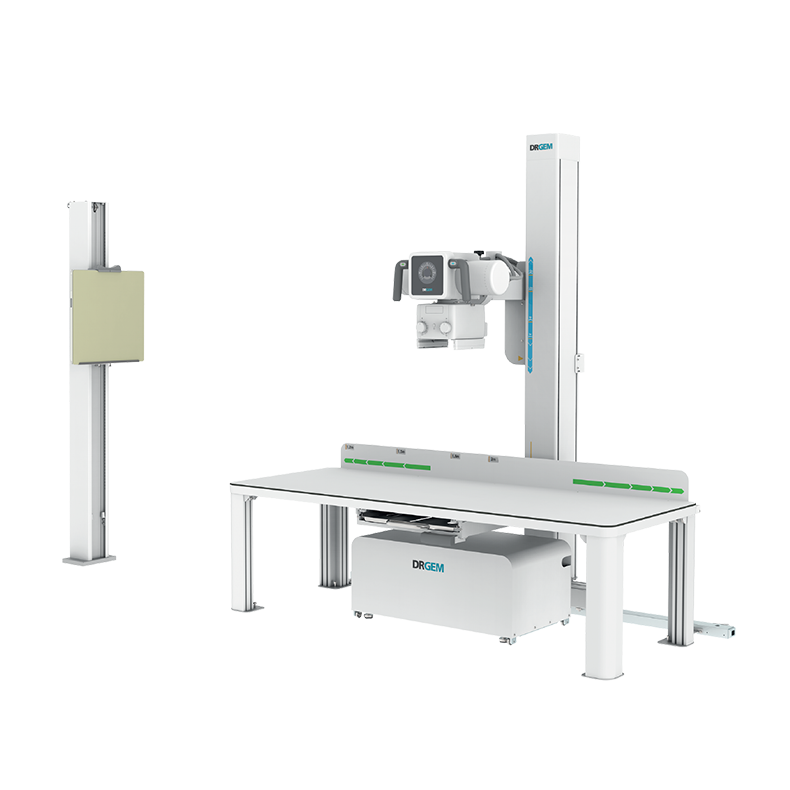

GXR-ES/ECS Series
Compact X-ray System
Fit for Your Space, Workflow and Budget
Lightweight and space-efficient, the GXR-ES/ECS Series delivers exceptional performance throughout its operation.
Compact, Effective and Affordable

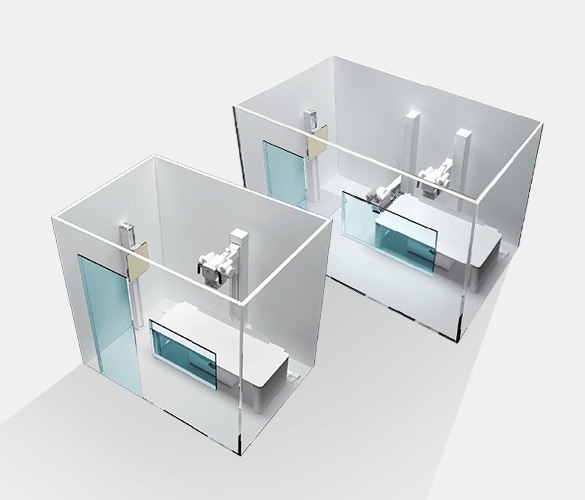

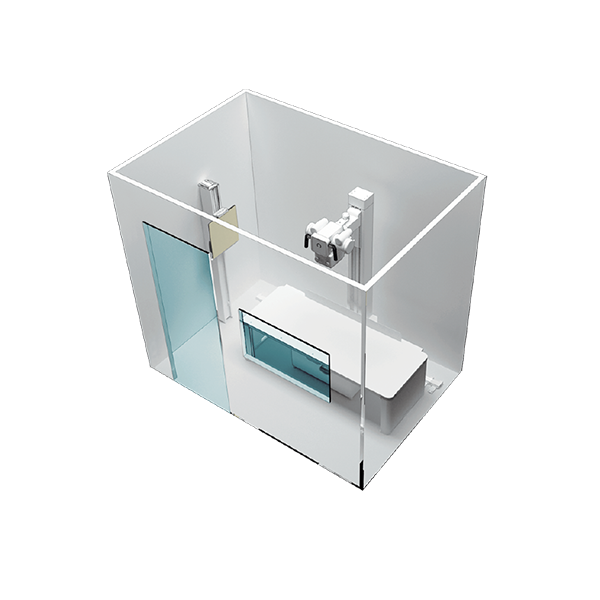

The DRGEM Compact Digital Radiography System features a space-saving design with the generator located beneath the patient table, requiring no wall or ceiling supports. With a minimum floor area of just 2.7m × 1.8m, it is ideal for facilities with limited space. This compact design not only optimizes room usage but also simplifies installation, reduces infrastructure costs, and provides full functionality for efficient and reliable digital radiography.
Key Features
Compact Size
Compact Size

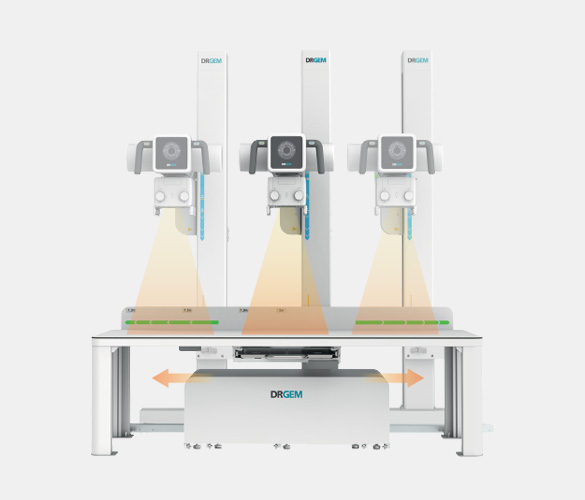

Bucky Auto Tracking
Bucky Auto Tracking
Cost-effective
GXR-ES/ECS Series features a compact design that minimizes installation requirements and optimizes space usage, significantly reducing infrastructure costs. This efficient design makes it an ideal and economical choice for facilities aiming to provide high-quality digital radiography while staying within budget constraints.
Capacitor-assisted Up to 50kW
The TOPAZ system provides superior driving experience, ensuring smooth maneuverability in various environments. Its robust design allows effortless navigation, making it ideal for busy hospital settings and tight spaces like ICUs and patient rooms.
Compact X-ray System
Various Patient Positioning
The “Various Patient Positioning” feature of the GXR-ES/ECS Series offers flexibility for diverse imaging needs. It supports multiple positions, including standing, supine, and angled views, enabling precise and efficient imaging for all patient conditions. This adaptability ensures accurate diagnostics and improved workflow efficiency in various clinical scenarios.

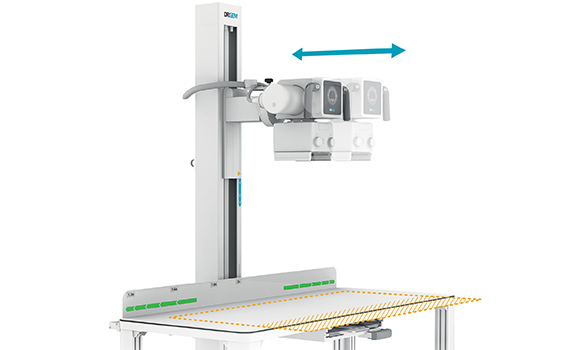

Wide Coverage for Orthopedic Diagnosis
GXR-ES/ECS Series’ “Wide Coverage for Orthopedic Diagnosis” feature uses transverse tube movement to expand the positioning range, enabling precise imaging of large or complex areas without frequent patient repositioning. This improves efficiency, reduces discomfort, and delivers high-quality orthopedic imaging.

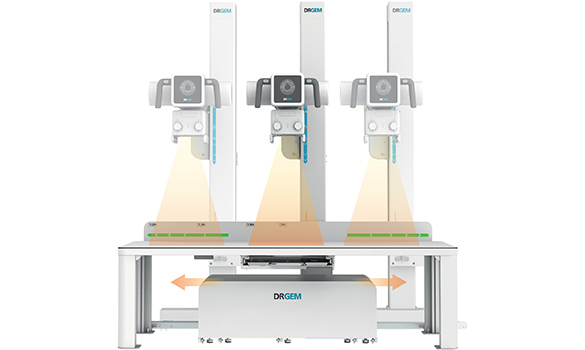

Bucky Auto Tracking
The table Bucky is always centered on the X-ray tube focus through the linkage, ensuring accurate imaging and improved workflow efficiency. Bucky Tracking can be easily enabled or released by simple operation, offering flexibility for oblique examinations and enhancing both operator convenience and patient comfort.

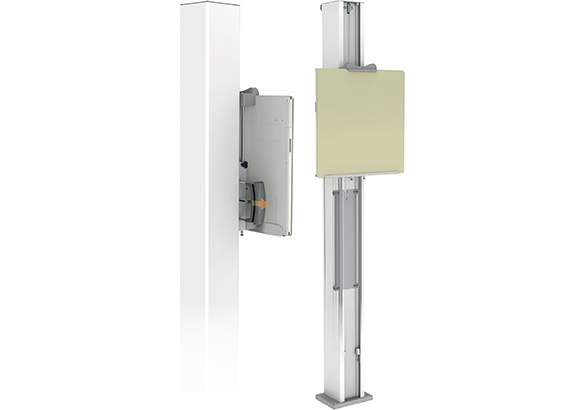

Wall Stand with Counter Balance
The Wall Stand with Counter Balance features a counterbalanced detector holder and control handle, allowing for light and easy vertical positioning. This design ensures smooth operation, enhancing user convenience and efficiency during imaging procedures.

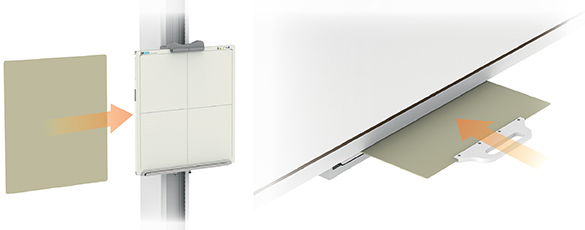

Removable Grid
The Removable Grid allows easy attachment and removal, offering flexibility for different imaging needs, especially for low-dose or pediatric applications.
Generator Control
The operator control console is intuitively designed for user-friendly operation.
Fit for Your Space
Wall Stand Options
The system provides versatile wall stand options, including the compact Wall Support, stable WBS-E Floor-Wall Mounted, freestanding WBS-E Floor Base, and advanced WBS (Wall Bucky Stand), ensuring flexibility and efficiency for diverse imaging needs.

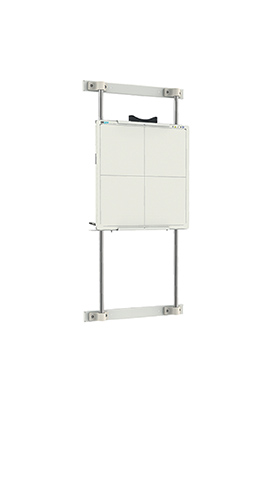

Wall Support

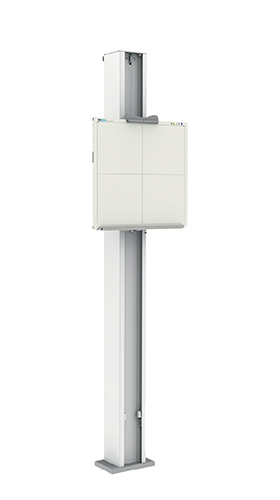

WBS-E (Floor-Wall Mounted)

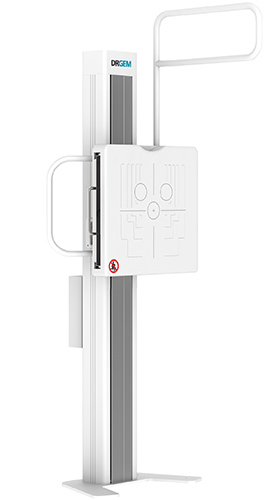

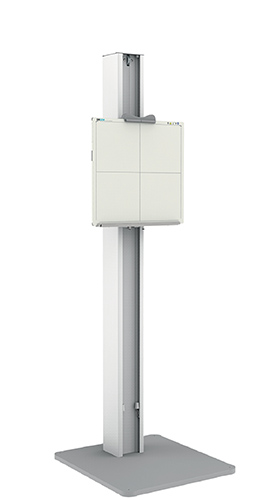

WBS-E (Floor Base)
WBS (Wall Bucky Stand)
Tube Stand Options
The system provides flexible tube stand options, including the TS-FT4 and TS-FT6 for compact setups, and an Extended Floor Rail option for greater positioning versatility, catering to various clinical and operational needs.

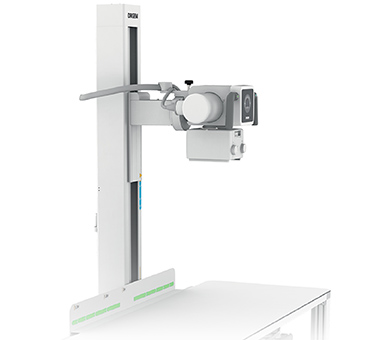

TS-FT4

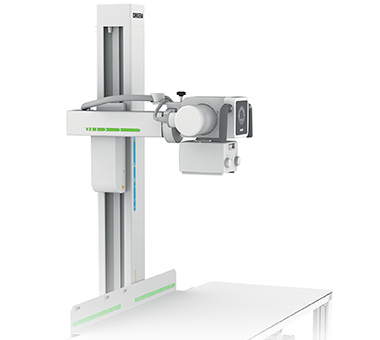

TS-FT6

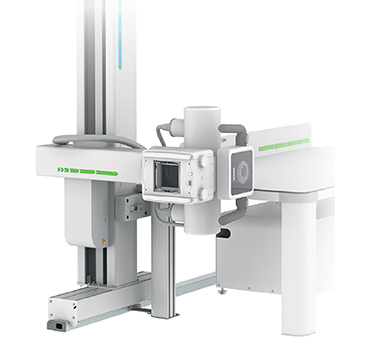

Extended Floor Rail

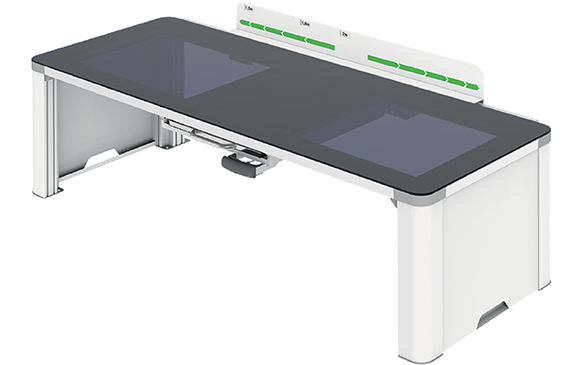

Table Options
The system offers flexible table options, including Acrylic Tabletops with Side Covers and height-adjustable configurations. The PBT-E Laminate Tabletop provides height options of 550mm, 660mm, and 700mm, while the PBT-E Acrylic Tabletop is available at a fixed height of 552mm, catering to diverse clinical and ergonomic requirements.
Other Options
GXR-ES/ECS Series options offer substantial benefits that significantly improve both the efficiency and quality of imaging procedures, making them essential components for any advanced radiology system.
• AEC ion chamber for table & WBS
• DAP (Dose Area Product) meter
• Console Stand
• Chest Handgrip
• Overhead Handgrip
• Lateral cassette holder for the table
• Handgrip for table
• Patient compression belt for table
• Protective apron/thyroid/goggle/gloves, and gonad protector
