All-In-One Digital Radiography System
Fully Automatic Operation
DIAMOND is a fully automatic digital radiography solution with auto-positioning and advanced image processing.
Automated Precision in X-ray Imaging
With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets pre-programmed parameters of the X-ray generator, adjusting the position of the motorized radiographic stand, X-ray collimation, and post-processing of the selected studies to enhance user efficiency and performance.
Key Features
Automatic Collimation
Automatic Collimation provides motorized control of the X-ray field size, automatically adjusting to correspond with different Source-to-Image Distances (SIDs). It also includes a user-adjustable lamp timer with an on/off switch for added convenience, ensuring precise field alignment and efficient operation.

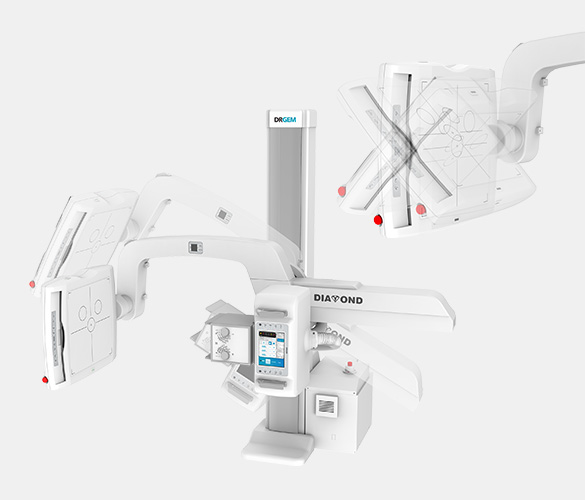

Automatic Positioning
Automatic Positioning is a feature of the DIAMOND system, a fully-automatic diagnostic solution. It includes motorized movements and pre-programmed data for effortless automatic positioning, which can be easily reprogrammed by the operator to suit specific needs. This ensures precision, efficiency, and adaptability in various imaging procedures.

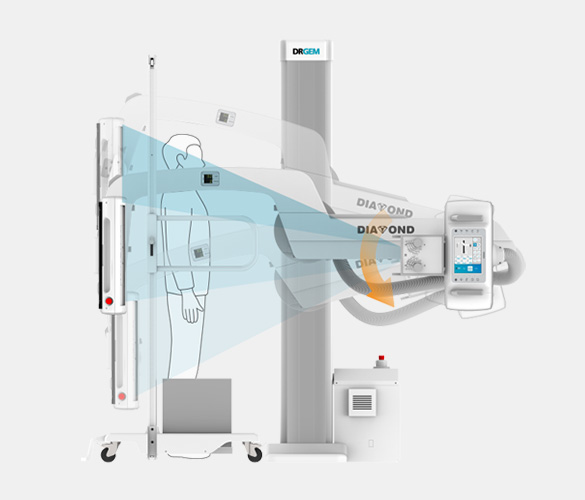

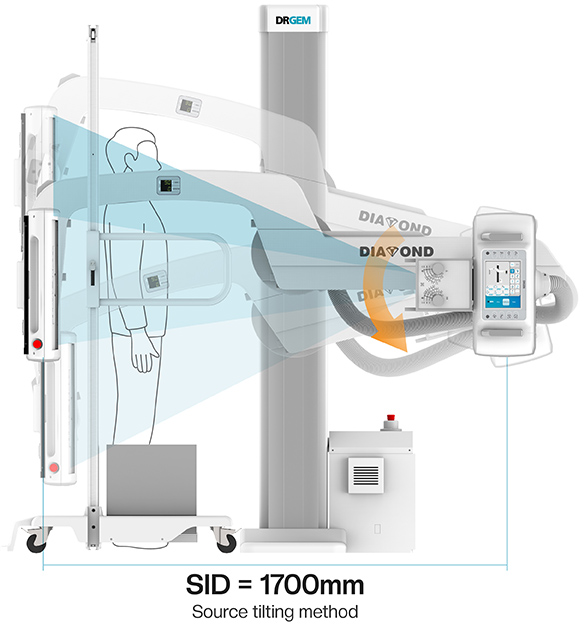

Automatic Stitching
Automatic Stitching in the DIAMOND system uses source tilting to seamlessly combine multiple images into one long composite image. This advanced feature simplifies the process of capturing full-spine or long-bone views, enhancing workflow efficiency and ensuring high-quality, consistent imaging results.

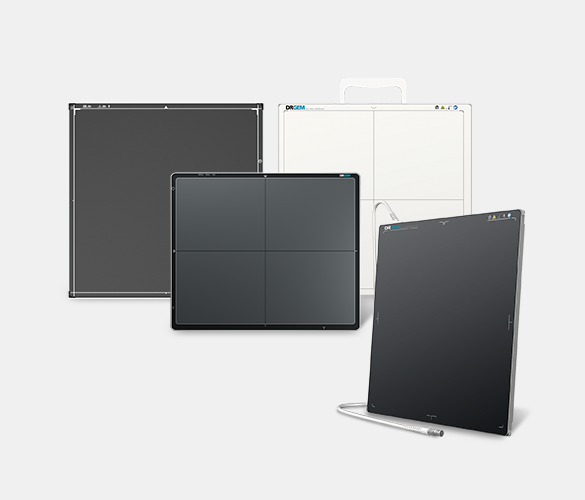

Outstanding Image Quality
Diamond delivers enhanced workflow, faster exams, and greater comfort through digital radiography using a flat panel detector. The detector features a CsI screen that offers excellent spatial resolution, high MTF and DQE, and consistent performance with fine pixel pitch. For optimized dose control, a 3-field ion chamber is included to support the AEC function.
Fully Automatic Operation
Automatic Stitching
Automatic Stitching in the DIAMOND system uses source tilting to seamlessly combine multiple images into one long composite image. This advanced feature simplifies the process of capturing full-spine or long-bone views, enhancing workflow efficiency and ensuring high-quality, consistent imaging results.
DIAMOND Positioning Guide
DIAMOND’s U-arm rotation ranges from +120° to +30° with SID movements from 100cm to 180cm. The mobile patient table can also be used to take patient images in a variety of positions, for a total of over 15 different positions. With effortless, fully-motorized positioning using the user-friendly touch console or remote control, DIAMOND is a truly versatile distal system.
